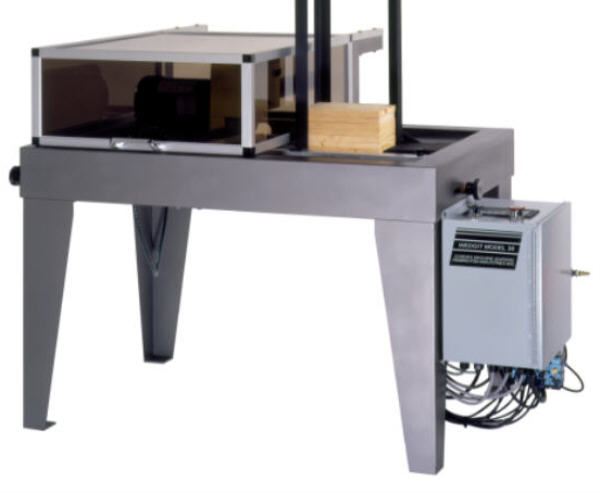

WEDGIT™ MODEL 30

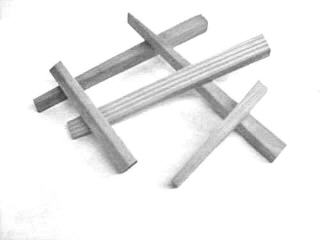

The Wedgit™ automatic wedge cutter speaks for itself.
This tried and true 3rd generation machine cuts wedges without an attendant.
Change wedge angle and wedge thickness on-the-fly.
Operator choice of wedge length and board thickness.
Consume entire boards (no scrap left over).
Capable of 5" up to 11" wedge lengths.
The Wedgit™ Model 30 uses PLC
technology to automatically cut wedges to fit your stairs.
Simple operation requires minimal training.
• Load supply
hopper
• Press Run button
• Walk away
• Machine will
then cut wedges automatically and continuously.
• Machine can be
adjusted for wedge length, wedge angle and Wedge thickness
• Add boards to
supply hopper without stopping or interrupting operation.
FEATURES
• Minimal operator
training
• Runs unattended
• PLC control
• Pneumatic power
• High speed
automatic cutting
• Does not require
programming
• Standard 10"
blade capacity
• Heavy duty steel
construction
• Wedge length 6"
to 11
• Operator choice
of wedge angle
• Operator choice
of wedge length
• Operator choice
of wedge thickness
SPECIFICATIONS
Footprint w/o Overhang.........33” x 47”
Height w/cover down.............58”
Weight.................................500 lbs.
Motor Power Required..........220VAC 3PH 20 A
Control Power Required........115VAC 1PH
Air Required.........................80 psi clean and dry
Saw Blade Capacity.............10” dia. x 5/8 hole
