Leaders in Stair Machinery
 Designed & Built in the USA

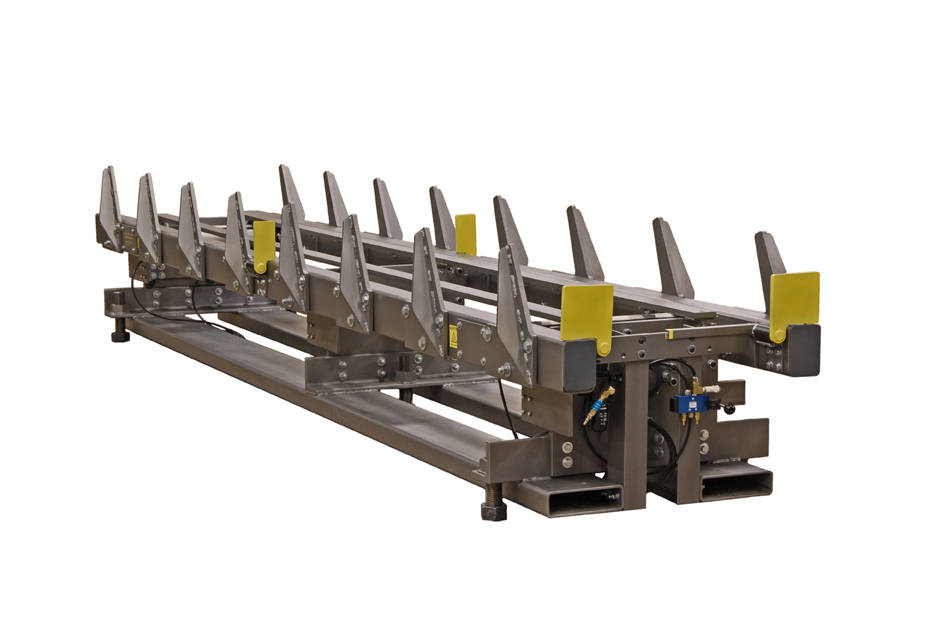

 STAIR-CLAMP™ MODEL 16 (Shown)








Our stair clamp is used for box stair construction is rugged yet precise.
It is designed for use by a low skill operator.
Operate knob to set desired opening using the inch scale.
Load stringers, risers & treads and again operate knob to automatically lock clamp.
Complete stair assembly with your choice of glue, wedges, nails, screws, etc.
Operate knob again to open clamp and slide out finished stair.

The Stair-Clamp™ is a rugged and well built machine which stands up to years of use.
It outlasts and outperforms any existing means of box stair assembly.


FEATURES
• Super heavy duty steel construction
• Operator choice of stair width
• Standard box step squared accurately
• Rigid and square clamp arms
• Full clamping power on every step
• Completely pneumatic
• Minimal operator training required
• Easy to read scale for width opening
• Rugged flip up squaring stop (no loose pieces)
• No hand adjustments required
• Stringer lengths unlimited
• Multiple stair assembly stops
• Lifetime Construction

SPECIFICATIONS
Footprint w/o Overhang................. 44” x 144”
Height.......................................... 45” (+3" With Casters)
Machine Weight............................ 3500 lbs.
Working Height............................. 24"-29" (+3" With Casters)
Air Required................................. 80 PSI Clean & Dry
Stringer Support Rail Width............4" each side

AVAILABLE OPTIONS
• 12' Stair Clamp Length
• 14' Stair Clamp Length
• 16' Stair Clamp Length
• Custom Lengths
• Full Pressure Indicator
• Extreme Working Height
• Casters

LITERATURE
Stair-Clamp™ Model 16 Data Sheet
(51.6 KB PDF)

VIDEO
Stair-Clamp™ Model 16 Video
(6min22Sec)





Stair-Clamp™ Model 16
