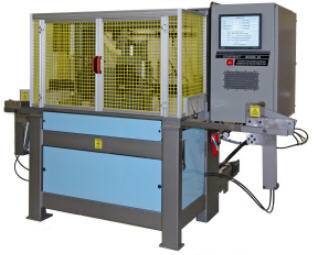

STAIR-ROUT™ MODEL 40








Our CNC stair stringer router used for box stair construction is fully automatic with no setup time.
It is designed for use by a low skill operator. Just match the numbers on the screen picture to the numbers on your work orders using fractions and press start.
You can also use it for other configurations including no riser stairs and extreme run sizes.
Everything is done with just the push of a button.

The Stair-Rout™ Model 40 is a fourth generation machine which uses CNC technology to automatically cut rise, run and advance the board.
Simple screen display requires operator to
• Enter rise
• Enter run
• Enter number of cuts
• Press start
• Menu Selectable Operation (no programming)

Machine continuously checks for operator entry errors.
After cutting, the operator has a default choice of repeating rise, run and number of risers or changing one or more selections.

FEATURES
• High speed automatic stringer routing
• Operator choice of repeat or change
• Standard Box Step Rout with Round Nose*
• Automatic rise, run cutting and board advancement
• Full 11 HP cutting power – two 5.5 HP motors direct drive (no belts)
• High frequency motors for clean cuts (vary speed solid state drive)
• Minimal operator training required
• Screen display shows scale picture of step before you cut
• Heavy duty steel construction
• No programming required
• Stringer 6” to 14” by 3/4” to 2½” (double or single stringers)

SPECIFICATIONS
Footprint w/o Overhang..........54” x 61”
Height...................................68”
Machine Weight.....................3500 lbs.
Motor Power Required...........208-220VAC 3PH 30A
Control Power Required.........115VAC 1PH
Air Required..........................80 PSI Clean & Dry
Tool Shank Capacity..............½” Diameter

AVAILABLE OPTIONS*
• Standard Rout with Square Nose
• Pocket Rout
• Pocket Rout with Square Nose
• Back Rout
• Back Rout with Square Nose
• Slant Riser
• Center Open Horse
• Open Routing with 45º Miter for Mating with Riser
• Tread Return Routing
• Custom Configurations


LITERATURE
Stair-Rout™ Model 40 Data Sheet
(58.5 KB PDF)


VIDEO
Stair-Rout™ Model 40 Video
(4min24sec)





Stair-Rout™ Model 40 Open Stringer Routing With 45º Cut For Riser Video
(3min16sec)







Stair-Rout™ Model 40 Tread Return Routing Video
(1min8sec)







Stair-Rout™ Model 40 Open Stringer Routing Bit Changeover Video
(1min27sec)





Stair-Rout™ Model 40




Standard Box Step with Round Nose
