Leaders in Stair Machinery
 Designed & Built in the USA

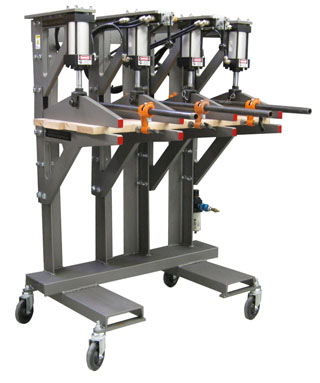

 PANEL CLAMP-IT™ MODEL 244 (Shown)








Our panel clamp is used for gluing up tread blanks or panels.
It is designed for use by a low skill operator.
Operate dual knobs to open clamp.
Load boards, add glue as you go.
Operate dual knobs to automatically align boards and lock clamp.
Complete tread blank gluing with pipe clamps as needed.
Operate dual knobs to open clamp and slide out tread blank for glue drying.

The Panel Clamp-It™ is a rugged built machine which will stand up to years of use.
It outlasts and outperforms any existing means of panel clamping.


FEATURES
• Super heavy duty steel construction
• Operator choice of panel width
• Standard treads and panels squared accurately
• Rigid and square clamp arms
• Full clamping power on every tread or panel
• Completely pneumatic
• Minimal operator training required
• Easy to load and unload
• Rugged squaring stops (no loose pieces)
• No hand adjustments required
• Available widths unlimited
• Multiple clamping stations for flexibility
• Lifetime Construction

SPECIFICATIONS
Footprint w/o Overhang (Model 244) ................. 43”w x 28”d
Height (minimum overall) ................................... 43”
Machine Weight (Model 244) ............................ 800 lbs.
Working Height (adjustable) .............................. 34" - 38"
Air Required .................................................... 80 PSI Clean & Dry
Clamp Support Rail Width ................................. 4" each station

AVAILABLE OPTIONS
• 24" Deep x 4' Wide
• 24" Deep x 6' Wide
• 24" Deep x 8' Wide
• Custom Depths and Widths
• Pipe Clamps With Pipe
• Casters For Mobility In Small Shops

LITERATURE
Panel Clamp-It™ Model 244 Data Sheet
(232.6 KB PDF)

VIDEO
Panel Clamp-It™ Model 244 Video
(2min8sec)



Panel Clamp-It™ Model 244
