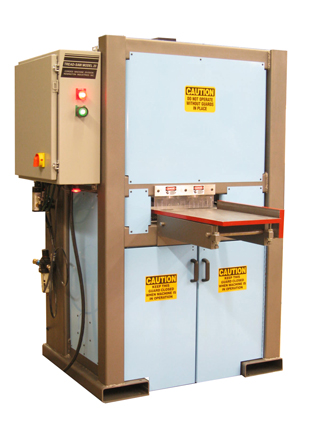

 TREAD-SAW™ MODEL 20














The Tread-Saw™ automatic tread return saw is great way to cut your costs when fabricating finished treads with returns. Our design integrates three up-cut saw blades to give you accurate trimming of your stair treads in preparation for nailing or gluing tread returns for finished stair treads.  This easy to load and unload tread saw will cut stair treads fast and with high quality.  Our simple to use design will allow almost anyone to cut stair treads for accepting the tread return component of your finished stair treads. This stand alone machine has a small footprint and will fit in almost any part of your shop.

DESIGN ADVANTAGES
• Positive clamping (will not move during cuts).
• Hard stops for board end and board edge
• Simple operator controls (Power and Cycle)
• Open table design accommodates cuts for retreads
• Easy loading and unloading of material by operator
• Compact footprint for small locations
• Simple head adjustments to accommodate blade sharpening



The Tread-Saw™ Model 20 uses PLC technology to automatically cut treads to fit your stairs.
Simple operation requires minimal training.

• Load board
• Press Cycle
• Machine will automatically clamp the board.
• Machine will then cut the end of your tread to accommodate the application of a tread return.
• Dual clamps automatically release the board.
• Operator removes the board.
• Repeat for next board.

FEATURES
• Minimal operator training
• PLC control
• Pneumatic clamping power
• Does not require programming
• Standard 8", 10" & 14"  blades
• Heavy duty steel construction


SPECIFICATIONS
Footprint w/o Overhang...,.... 43” x 34”
Height w/cover down............ 96”
Weight................................ 1500 lbs.
Motor Power Required......... 208-220VAC 3PH 30A
Control Power Required........115VAC 1PH  15A
Air Required......................... 80 psi clean and dry
Blade Size............................ 8", 10" & 14" Diameters


LITERATURE
Tread-Saw™ Model 20 Data Sheet
(44.2 KB PDF)

VIDEO
Tread-Saw™ Model 20 Video
(1min1sec)

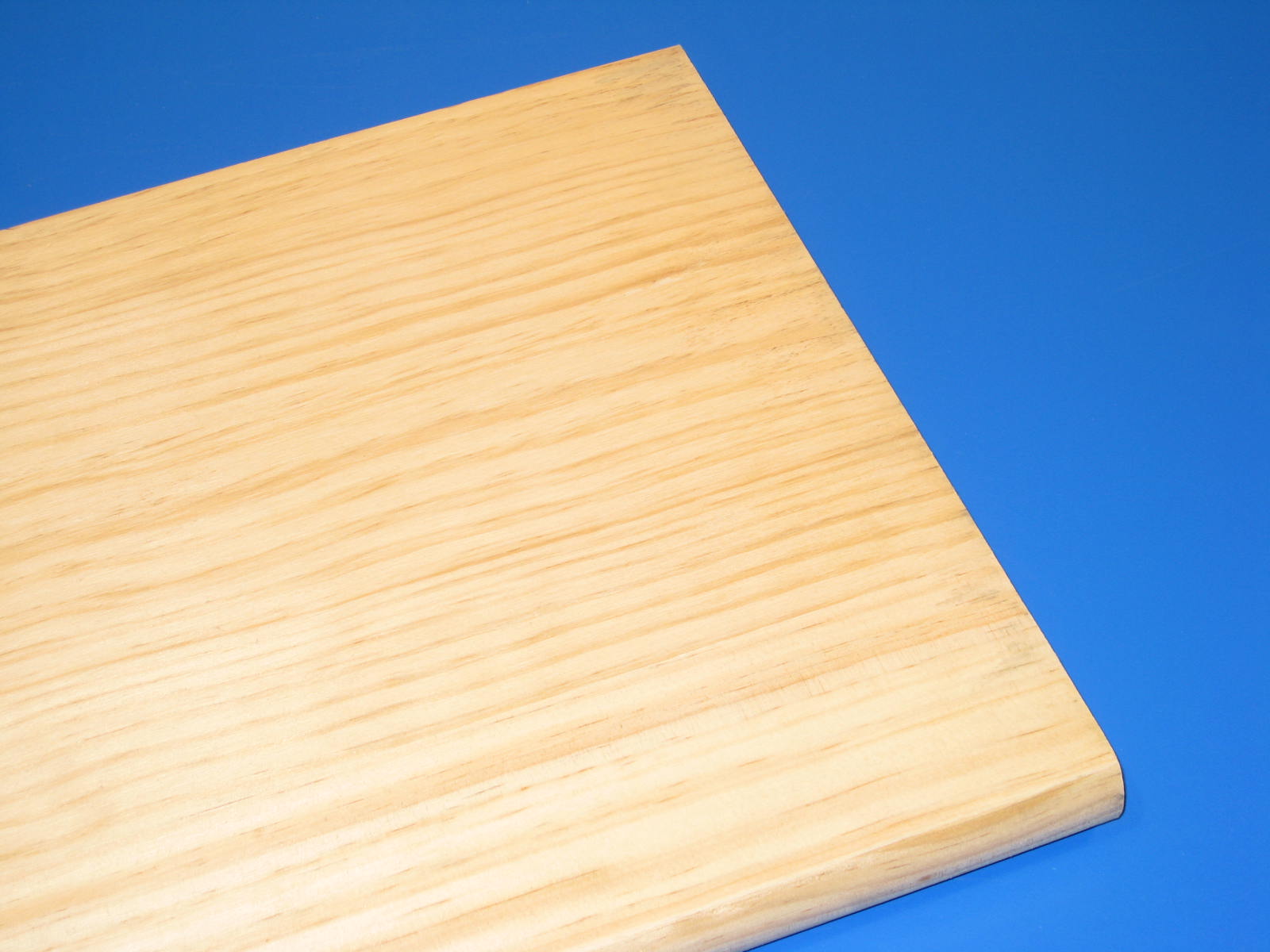

From This



Standard Tread

  To This
in Seconds


Cut Tread

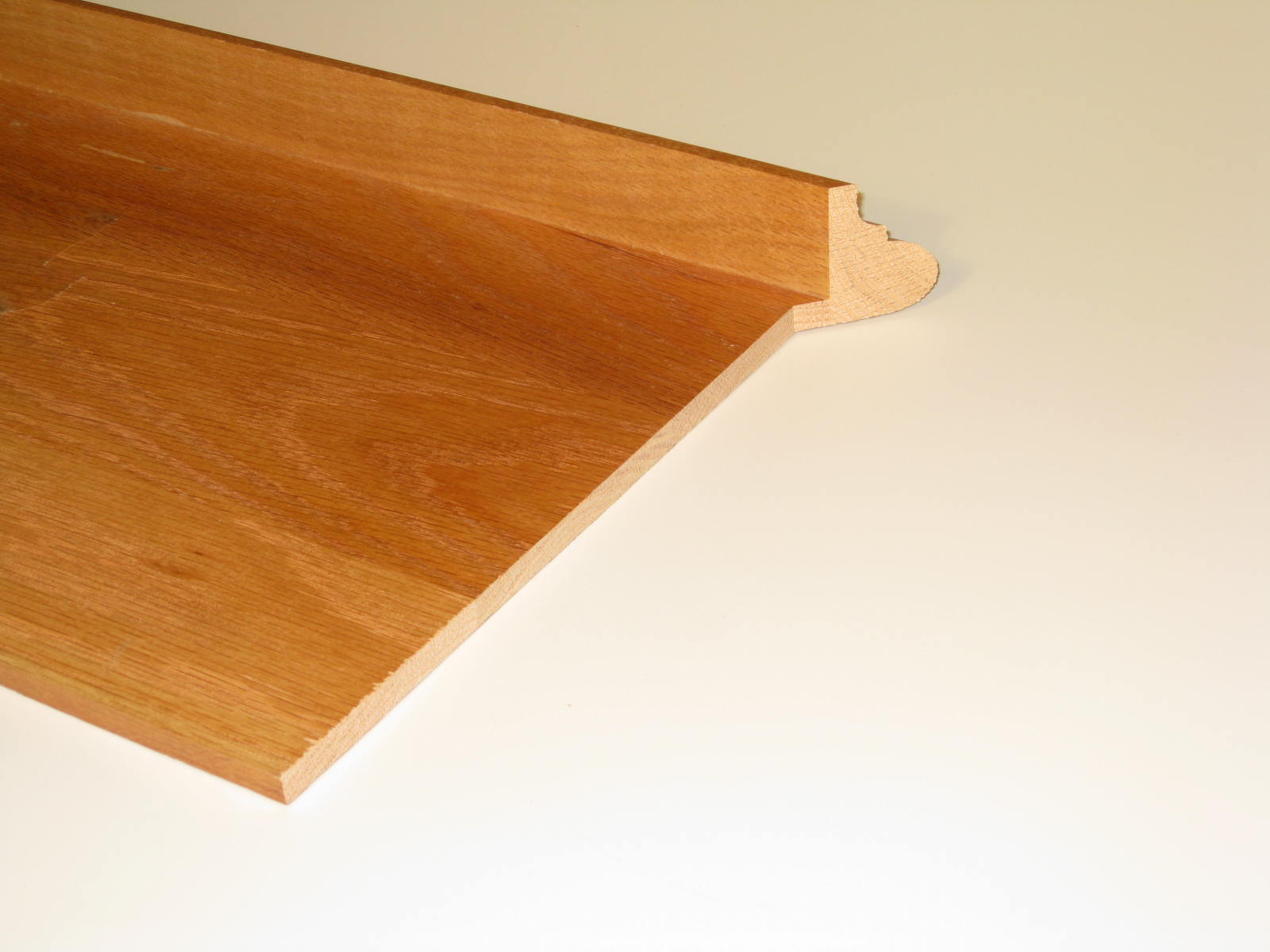

Or This
 in Seconds



Cut ReTread
